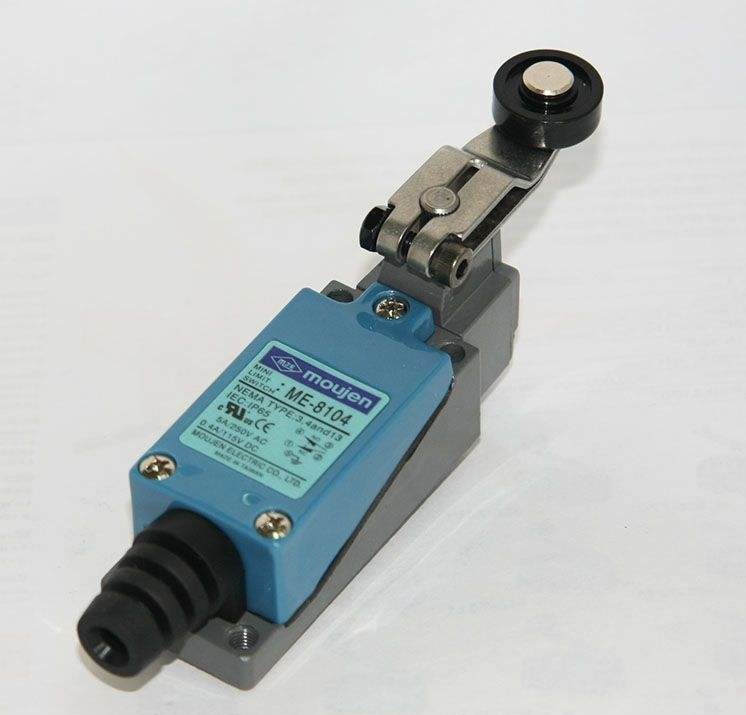

 小型橫式限制開關 (Made in Taiwan) | |
|
 功能 : |
 可配合各種不同之連桿及頭 |
| 具多種使用特性曲線 |
| 接線頭具帽式覆蓋螺絲 |
| 可調式 |
| 內裝接地螺絲 |
| 防塵、防油、防水 |
適用溫度 +5 至 +160 . (-15 to +70) . |
| |
|
額定電壓 : |
| |
|
| |
|
|
電氣迴路 : |
| |
|
| |
|
|
FIELD ADJUSTABLE : |
| |
Rotary motion roller lever and rod actuators are adjustable
through 360°. They may be set for operation clockwise, counter-clockwise, or in both directions. Operating heads may be positioned in any of four 90° positions. |
| |
|
|
EASY WIRING : |
| 1. |
Loosen cover screws and remove cover. |
| 2. |
Remove rubber strain relief from switch cover. |
| 3. |
Slip strain relief over cable. |
| 4. |
Fasten terminal screws and grounding screw tightly after inserting cables or terminals. |
| 5. |
After wiring insert strain refief into the groove of the switch cover. |
| 6. |
Fasten 3 cover screws evenly. Do not over tighten. |
| 7. |
Recommended Cable-# 18/3 SJT Flexible. | |
| |
防油限制開關 (Made in Taiwan) | |
|
|
|
| 功能 : |
| 可配合各種不同之連桿及頭 |
| 具多種使用特性曲線 |
| 接線頭具帽式覆蓋螺絲 |
| 防塵、防油、防水 |
| 不鏽鋼主零件 |
| 規(guī)格及尺寸標準化 1/2” conduit entry. |
| 適用溫度 +15°F to +175°F (-10℃ to +80℃) |
| |
| 所有密封式限制開關都是雙迴路限制開關,1NO(常開)與1NC(常閉 )迴路,各迴路接點俱為兩段式絕緣。 |
| |
|
額定電壓 : |
| |
| 10A |
125 or 300V AC(resistive) |
|
0.8A |
125 VDC(resistive) |
|
0.4A |
250V DC |
|
1/2HP |
125 V AC |
|
1HP |
250 V AC | |
| |
|
|
電氣迴路 : |
| |
|
| |
|
|
特性 : |
| |
| Operating speed |
1mm to 2m/sec |
|
Operating frequency |
Mechanically: 120 operations/min.
Electrically: 30 operations/min. |
|
Contact resistance |
15m  max.(initial) |
|
Insulation resistance |
100M min.(at 500 VDC) |
|
Dielectric strength |
1,000 VAC, 50/60 Hz for 1 minute between non-continuous terminals
2,200 VAC, 50/60 Hz for 1 minute between each terminal and non-current-Carrying metal part and between each terminal ground. |
|
Vibration |
Malfunction durability:10 to 55Hz 1.5mm double amplitude
|
|
Shock |
Mechanical durability:
Approx.1,000m/sec2 (approx. 100G s)
Malfunction durability:Approx.300m/sec2(approx.30 G s) |
|
Ambient operating temperature |
Operating:-10 to +80
|
|
Humidity |
95% RH max
|
|
Service life |
Mechanically:
15,000,000 operations min
Electrically:(2.5A, 110VAC)MAX
500,000 operations min. |
|
Degree of protection |
IEC 529 class IP65
(Sealed accessories requirement) | |
| |
| |
|
|
| |
| |
| 密封式限制開關 (Made in Taiwan) | |
|
| 功能 |
| 小型設計種類齊全與強制脫離安全開關可供選擇 |
| 防油、防水程度佳，符合IP67 |
| 標準品附2m或3m電纜線(VCTF或 SJTO電纜) |
| SJTO電纜線為UL認證之耐油纜線 |
| 標準型、側出線型、快速連結型 |
| |
|
| |
|
標準型 |
| |
ORDERING CODE : |
| |
|
| |
電纜規(guī)格、長度 |
| |
|
| |
| VCTF Cable |
(0.75mm2 x 4c) |
| SJTO Cable (UL approved) |
(18AWG x 4c) |
| |
| |
| |
ELECTRICAL RATING |
|
| |
5A 125 or 250 V AC |
| |
3A 30 V DC |
| |
0.4A 125 V DC |
| |
|
| |
CIRCUITRY |
| |
| |
| |
